Comutatorul poate fi definit ca fiind un comutator electric rotativ într-un anumit tip de generatoare, precum și motoare. Acesta este folosit în principal pentru a răsturna direcția curentului între circuitul extern și rotor. Acesta cuprinde un cilindru cu numeroase segmente de contact metalice situate pe armătura rotativă a mașinii. Periile sau contactele electrice sunt realizate cu un material presat de carbon lângă comutator, proiectând contactul de alunecare prin segmente consecutive ale comutatorului în timp ce acesta se rotește. Înfășurările armăturii sunt aliate cu segmentele comutatorului.

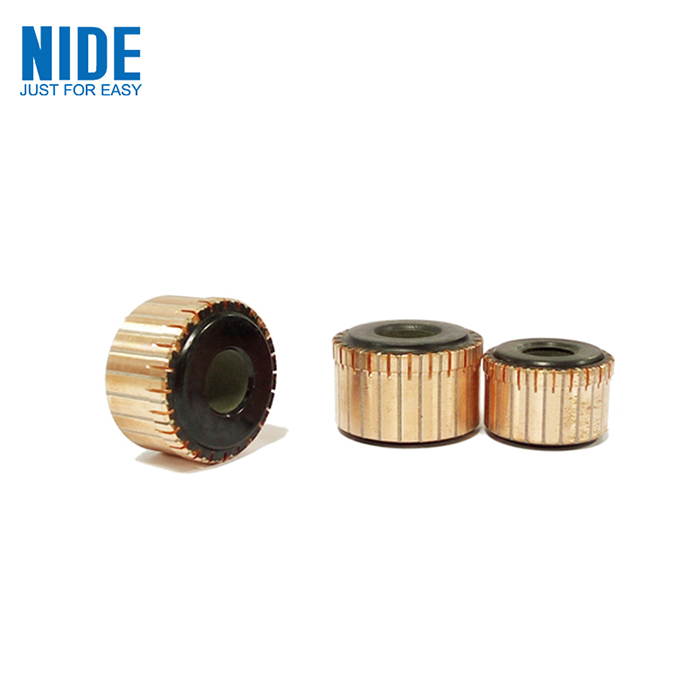

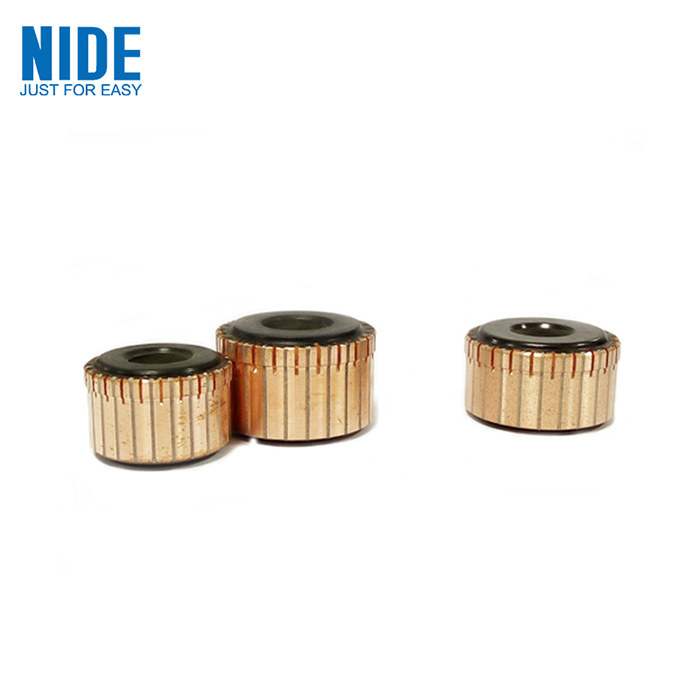

Numele produsului: | Comutator de parte a motorului de curent continuu |
DIN | 37.5 |
ID | f13 |
Inaltimea totala | 26 |
Lungimea segmentului | 23 |
Cârlig/Rizer dia. | 38.5 |
barul nr. | 32 |
Partea nr. |
O.D (D) |
ID (d) |
Total O D (D1) |
Bar No(N) |
Lungimea barei (L1) |
Lungime totală (L) |
JZQE-RS12-148 |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-148B |
63 |
20 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-148C |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-149 |
40 |
15 |
43 |
43 |
10 |
18.2 |
JZQE-RS31-150 |
44 |
12.08 |
23 |
10 |
12.5 |
|
JZQE-RS31-150B |
44 |
12.35 |
23 |
10 |
12.5 |
|
JZQE-RS31-150C |
44 |
12.06 |
23 |
10 |
12.5 |
|
JZQE-RS31-150D |
44.2 |
12.08 |
23 |
10 |
12.5 |
|
JZQE-RS31-150E |
44 |
12 |
23 |
10 |
12.5 |
|
JZQE-RS12-151 |
47.6 |
13.2 |
57 |
16 |
14 |
24.5 |
JZQE-RS12-151B |
47.6 |
13.2 |
57 |
16 |
14 |
22 |
JZQE-RS12-151C |
47.6 |
13 |
57 |
16 |
14 |
24.5 |
JZQE-RS12-151D |
47.6 |
13 |
57 |
16 |
14 |
22 |
JZQE-RS12-151E |
47.6 |
13.4 |
57 |
16 |
14 |
24.5 |
JZQE-RS31-169 |
38 |
12.08 |
26 |
10 |
14.3 |
|
JZQE-RS12-193 |
74 |
33 |
85 |
81 |
12 |
12 |
JZQE-RS12-247 |
19.5 |
4 |
7 |
3 |
5.5 |
|
JZQE-RS12-326 |
49 |
13.2 |
16 |
14 |
15 |
|
JZQE-RS32-348 |
58 |
24.1 |
25 |
|||
JZQE-RS32-464 |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS32-464B |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
JZQE-RS32-464C |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
JZQE-RS32-464D |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS32-464E |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS12-480 |
78 |
23 |
25 |
13 |
23 |
|
JZQE-RS32-508 |
20.5 |
3.175 |
25 |
8 |
4.2 |
8.5 |
JZQE-RS31-525 |
44.2 |
12.08 |
23 |
10 |
13 |
|
JZQE-RS31-525B |
44.2 |
12.35 |
23 |
10 |
13 |
|
JZQE-RS31-525C |
44.2 |
12 |
23 |
10 |
13 |
|
JZQE-RS32-555 |
20.5 |
3 |
24.7 |
8 |
5.7 |
8.6 |
JZQE-RS12-593 |
71.5 |
13.2 |
64 |
24 |
28 |
32.5 |
JZQE-RS11-608 |
52.5 |
16 |
19 |
6.5 |
16 |
|
JZQE-RS11-608B |
52.5 |
16 |
19 |
6.5 |
16 |
|
JZQE-RS32-618 |
23 |
4 |
28.5 |
10 |
6.5 |
10 |
JZQE-RS32-618B |
22.5 |
4 |
28 |
10 |
6.5 |
10 |
JZQE-RS32-651 |
47.6 |
13 |
56.5 |
16 |
12.5 |
18.5 |
JZQE-RS32-664 |
48 |
13.4 |
57.5 |
16 |
12.5 |
24.5 |
JZQE-RS12-688 |
59 |
24.1 |
58 |
25 |
34.9 |
22 |
JZQE-RS12-689 |
59 |
24.1 |
58 |
25 |
34.9 |
19.5 |
JZQE-RS32-717 |
47.6 |
13.3 |
56.5 |
16 |
12 |
24.77 |
JZQE-RS32-739 |
44.2 |
13.8 |
23 |
10 |
13 |
|
JZQA-RS12-752 |
31 |
11.5 |
40 |
21 |
25.5 |
28 |
JZQB-RS31-792 |
61 |
13.5 |
29 |
9 |
16 |
|
JZQE-RS31-796 |
44.2 |
9 |
23 |
10 |
12.5 |
|
JZQE-RS12-846 |
48.5 |
10.2 |
48.5 |
25 |
6 |
11 |
JZQE-RS32-854 |
47.6 |
13.2 |
56.6 |
16 |
7 |
22 |
JZQE-RS12-907 |
48.5 |
10.2 |
48.5 |
25 |
6 |
10 |
JZQE-RS12-926 |
64 |
20 |
60 |
31 |
5 |
17 |
Acest comutator este utilizat în motoare AC, motor monofazat, motoare de automobile, motoare de pornire pentru motociclete, motoare de scule electrice și micro motoare speciale.
Comutator cu un singur motor pentru motor AC
